In modern industrial processes, accurate measurement of fluid flow is critical for efficiency, safety, and cost control. Among the various technologies available, the Coriolis effect mass flow meter stands out as one of the most precise and reliable instruments. Whether used in chemical plants, oil and gas operations, or food processing industries, the Coriolis mass flow meter offers unmatched accuracy by directly measuring mass flow rather than relying on volume.
This article explores how this technology works, its advantages, applications, and why it has become an essential tool in today’s industries.
What Is a Coriolis Effect Mass Flow Meter?
A Coriolis effect mass flow meter is a device that measures the mass flow rate of fluids (liquids or gases) using the principles of the Coriolis Effect. Unlike traditional flow meters that measure volume, this technology directly measures mass, which is more accurate because it is not affected by temperature, pressure, or density changes.

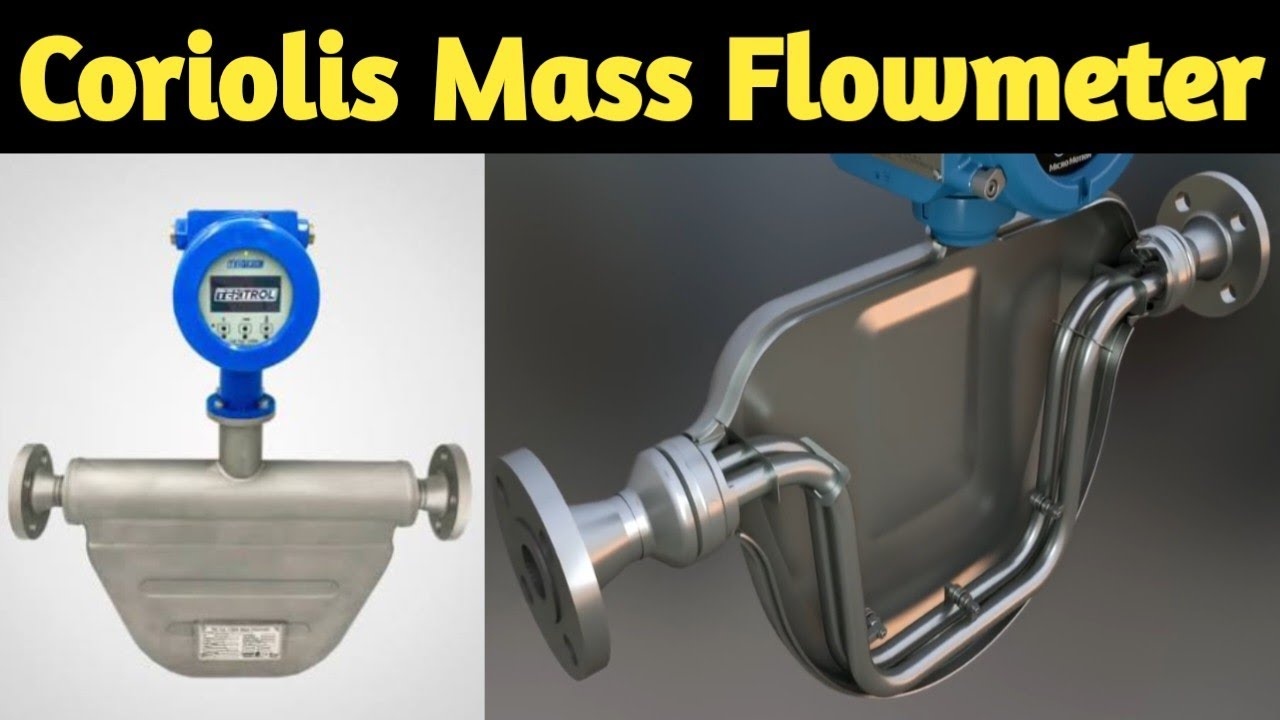

The meter typically consists of one or more vibrating tubes. As fluid passes through these tubes, the motion caused by the Coriolis force creates measurable changes that allow the device to determine the flow rate.
How the Coriolis Effect Works in Flow Measurement
The Coriolis Effect refers to the apparent deflection of moving objects when viewed in a rotating reference frame. In the case of a flow meter, this principle is applied in a controlled environment.
Inside the meter, tubes are vibrated at a specific frequency. When no fluid is flowing, the vibration is uniform. However, when fluid flows through the tubes, the inertia of the moving mass causes a slight twist or phase shift in the tubes. Sensors detect this change, and the system calculates the mass flow rate based on the degree of deflection.
This direct relationship between flow and tube deformation makes the Coriolis mass flow meter extremely precise.
Key Features of Coriolis Mass Flow Meters
High Accuracy and Reliability
One of the biggest advantages of a Coriolis effect mass flow meter is its exceptional accuracy. It can measure flow with minimal error, often within ±0.1%. This makes it ideal for applications where precision is critical, such as chemical dosing or custody transfer.
Direct Mass Measurement
Unlike volumetric meters, a Coriolis mass flow meter measures mass directly. This eliminates the need for additional calculations or compensation for temperature and pressure variations.
Multi-Parameter Measurement
In addition to mass flow, many Coriolis meters can also measure:
- Fluid density
- Temperature
- Flow consistency
This multi-function capability reduces the need for multiple instruments.
Minimal Maintenance
Since there are no moving parts that come into contact with the fluid (apart from vibrating tubes), wear and tear is minimal. This results in lower maintenance costs over time.
Applications of Coriolis Mass Flow Meters
Oil and Gas Industry
In the oil and gas sector, accurate measurement of hydrocarbons is essential for both operational efficiency and financial transactions. The Coriolis effect mass flow meter is widely used for custody transfer, blending, and pipeline monitoring.
Chemical Processing
Chemical plants rely on precise flow measurements for mixing and reactions. Even small inaccuracies can lead to significant quality issues. The Coriolis mass flow meter ensures exact dosing and consistency.
Food and Beverage Industry
In food processing, maintaining product quality is crucial. Coriolis meters are used to measure ingredients such as milk, syrups, and oils with high accuracy while maintaining hygiene standards.
Pharmaceuticals
Pharmaceutical production requires strict control over ingredients and processes. The precision of the Coriolis effect mass flow meter makes it suitable for critical applications where accuracy cannot be compromised.
Advantages Over Traditional Flow Meters
Traditional flow meters, such as turbine or differential pressure meters, often measure volumetric flow. These methods can be affected by external factors like temperature and pressure.
In contrast, the Coriolis mass flow meter offers:
- Direct mass measurement
- Independence from fluid properties
- Higher accuracy
- Reduced need for calibration
These benefits make it a preferred choice in modern industrial systems.
Limitations to Consider
Despite its advantages, the Coriolis effect mass flow meter is not without limitations.
High Initial Cost
Coriolis meters are generally more expensive than other types of flow meters. However, their long-term benefits often justify the investment.
Sensitivity to External Vibrations
Since the device relies on vibration, external mechanical disturbances can sometimes affect performance. Proper installation can minimize this issue.
Size Constraints
For very large pipe diameters, Coriolis meters may not be practical due to size and cost considerations.
Why Industries Prefer Coriolis Technology
The growing demand for accuracy and efficiency in industrial processes has led to the widespread adoption of the Coriolis mass flow meter. Its ability to provide real-time, precise measurements makes it invaluable in environments where even small errors can have significant consequences.
Additionally, advancements in sensor technology and digital processing have made these meters more robust, user-friendly, and adaptable to various applications.
Future Trends in Coriolis Flow Measurement
As industries continue to evolve, the role of smart instrumentation is becoming more prominent. Modern Coriolis effect mass flow meters are now being integrated with digital systems, enabling:
- Remote monitoring
- Predictive maintenance
- Data analytics for process optimization
These innovations are expected to further enhance the efficiency and reliability of flow measurement systems.
Conclusion
The Coriolis effect mass flow meter represents a significant advancement in flow measurement technology. By utilizing the principles of the Coriolis Effect, it provides highly accurate and reliable mass flow data across a wide range of industries.
From oil and gas to pharmaceuticals, the Coriolis mass flow meter continues to play a vital role in ensuring precision, efficiency, and quality in industrial processes. While it may come with a higher initial cost, its long-term benefits make it a smart investment for businesses seeking dependable measurement solutions.
In a world where accuracy matters more than ever, this technology stands as a benchmark for performance and innovation.
