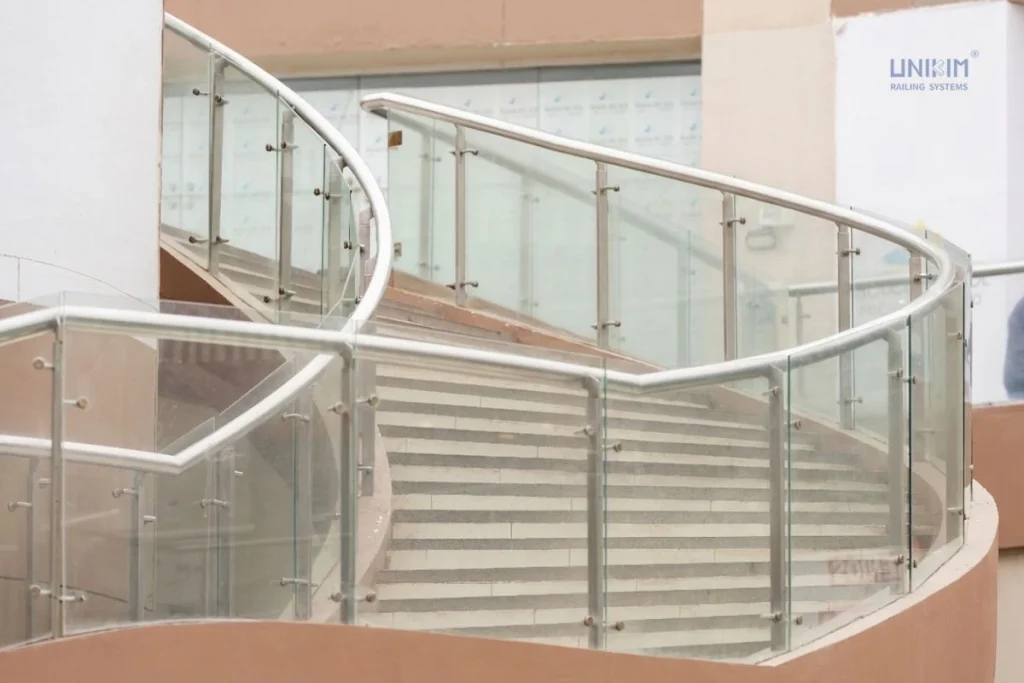

Modern commercial architecture relies heavily on open spaces, visual transparency, and minimalist design cues. One of the most effective ways to achieve this look is by incorporating glass railing systems for commercial staircases. From corporate offices and luxury hotels to transit hubs and retail centers, glass has largely replaced heavy, opaque barriers to deliver a premium, light-filled aesthetic.

Unlike old-fashioned metal or wooden frameworks that visually fragment an interior, clean glass installations create a fluid design language across multiple levels while maintaining excellent structural strength. When evaluating choices for high-traffic public properties, developers frequently contrast these transparent features against options like classic metal pickets or sleek stainless steel cable railing systems to find the right functional balance.

                  [Commercial Railing Selection]
                                │
        ┌───────────────────────┴───────────────────────┐
        ▼                                               ▼
[Glass Balustrades]                             [Tensioned Cables]
- Maximum natural light                         - Minimalist industrial feel
- Clear multi-floor sightlines                  - Excellent ventilation
- Built-in windbreak protection                 - Straightforward alignment

Why Modern Commercial Spaces Standardize on Glass Railings

Commercial structures must serve two masters: strict structural engineering rules and high-end aesthetic appeal. Selecting premium materials for primary staircases instantly elevates the user experience while checking off crucial development checkmarks:

• Smarter Daylight Integration: Clear glass barriers allow natural light to filter deep into multi-story floor plans. Architectural studies indicate that maximizing daylight penetration can boost perceived indoor brightness by 30% to 50%, decreasing daily artificial energy usage.
• Enhanced Spatial Awareness: In vast, busy spaces like airports or retail malls, clear lines of sight make it much easier for pedestrians to find their way around, keeping foot traffic moving smoothly across levels.
• Long-Term Property Valuation: Modern tenants routinely link clean, glass-and-steel architectural features with higher building quality, justifying stronger lease values and reflecting premium building care.

For projects requiring specialized designs, consulting the structural engineering options on the URailing homepage can help map out custom system dimensions early in the design phase.

Anatomy of a Commercial Glass Railing System

A commercial-grade glass staircase is an engineered assembly built to handle constant physical interaction and shifting building loads. To ensure compliance with global building guidelines, these configurations feature several tightly integrated parts:

1. Architectural Safety Glass: Thick sheets of heavy-duty tempered or laminated safety glass form the primary structural wall.
2. Heavy-Duty Base Supports: Strong metal options like continuous aluminum shoe channels or solid floor spigots anchor the panels directly to the building substrate.
3. High-Strength Hardware Connectors: Tight-grip components, including a specialized stainless steel glass clamp 304 316 golden round glass clamp, lock the glass sections safely in place.
4. Structural Handrails: Top rails or side-mounted grab bars provide a stable surface for users, spreading localized impact stresses evenly across adjacent glass panels.

Glass Railing Configurations: Frameless vs. Framed

Contractors select specific system layouts depending on structural requirements, expected foot traffic, and budget goals:

Frameless Systems

Frameless setups rely entirely on heavy structural glass panels clamped securely at the base, creating a premium floating look. These configurations provide completely unobstructed views and are highly favored for corporate main lobbies and upscale offices.

Semi-Framed Layouts

These designs use slim metal posts positioned between the glass panels to provide extra lateral strength while maintaining excellent transparency. They are a practical option for multi-family residential steps or mid-rise corporate spaces that require a clear view alongside visible structural support.

Fully Framed Assemblies

Fully framed layouts enclose each glass panel within a protective metal framework. This traditional design handles heavy, continuous wear effortlessly, making it the preferred choice for high-volume public transit hubs, schools, and busy shopping malls.

Material Specifications: Glass & Stainless Steel

Choosing Glass Type and Thickness

Commercial public codes demand far higher structural safety values than standard residential projects. The thickness of the glass panels scales up depending on the anticipated floor load and traffic patterns:

The Value of Premium Alloys

The metal components supporting the glass panels must resist structural fatigue and surface tarnishing over decades of use. Precision manufacturers use high-grade alloys to guarantee long-term durability. To better understand how these metals perform across different indoor and outdoor environments, review our breakdown of 304 vs 316 stainless steel handrails.

Technical Comparison: Glass vs. Traditional Cable Systems

When deciding between glass panels and alternative modern options like high-tension cables, contractors look at a mix of installation speed, code compliance, and lifetime maintenance needs:

For spaces where open airflow is more important than a solid windbreak, exploring a complete buyer’s guide to SS cable railing kits offers a detailed look at tensioned wire designs. Alternatively, tracking the top trends in stainless steel cable railing systems for 2026 can reveal unique ways to blend modern glass elements with high-strength metal hardware.

Professional Installation Steps for Contractors

Installing commercial glass railings requires precise alignment and proper tool calibration to prevent structural binding or stress points.

1.Substrate Verification:Prerequisite Phase.

Inspect the structural concrete slab or steel stair stringer. Ensure the anchor surface is perfectly level, clear of debris, and thick enough to meet local building safety margins.

2.Laser Line Alignment:Precision Setup.

Layout the railing path using high-accuracy multi-axis laser levels. Even a tiny misalignment at the base can cause a significant tilt at the top of the glass pane.

3.Base Hardware Anchoring:Structural Foundation.

Drill and set the heavy-duty base shoe channels, floor spigots, or side standoff mounts. Secure the components using code-approved mechanical or chemical anchoring bolts.

4.Panel Setting and Shimming:Glass Positioning.

Lower the glass panels carefully into the base hardware using heavy-duty suction lifters. Insert specialized, non-rigid setting blocks and isolation shims to prevent any direct metal-to-glass contact.

5.Handrail Integration:Load Distribution.

Attach the top rail or side-mounted grab bars using high-strength 304 and 316 handrail brackets to bridge adjacent panels and distribute lateral impact loads evenly.

Maintenance and Long-Term Performance

While glass panels do not rust, split, or rot, keeping a commercial system looking pristine requires a basic preventative maintenance routine:

• Routine Surface Washing: Clean the glass surfaces regularly with a mild, non-abrasive detergent to remove oils, smudges, and dirt.
• Hardware Fastener Inspections: Check base bolts and glass clamps every year to ensure building movement hasn’t loosened any connections. For properties utilizing wire systems alongside glass accents, learning how to maintain stainless steel cable railing helps protect your exterior components from weathering.
• Gasket and Seal Checks: Inspect rubber isolation gaskets to make sure they remain flexible and firmly seated inside the clamps, keeping the glass properly isolated from hard metal contact.

On properties that use a mix of materials, checking out a guide on stainless steel cable railings for DIY decks can provide handy, step-by-step upkeep tips for your maintenance team.

Exploring Alternative Commercial Railing Configurations

Depending on the overall layout of your commercial property, you can blend glass features with other specialized modern hardware options to enhance safety and visual appeal:

• Overhead Glass Canopies: Installing a durable stainless steel glass canopy system at the main entrance coordinates beautifully with your interior glass staircases.
• Open-Air Decks: For outdoor terrace railings, combining a stainless steel deck cable railing system with solid glass panels delivers a great balance of airflow and wind protection.
• Interior Transitions: For multi-level transitions, using a front porch vertical interior cable railing fence kit for stairs provides an industrial style that complements modern architecture.

Pro Tip: When setting up wire railings next to glass systems, always source high-tensile stainless steel cable for outdoor railing runs to prevent sagging and minimize long-term maintenance.

Procurement and Global Manufacturing Connections

Sourcing reliable, code-compliant components is essential for finishing large commercial developments on schedule. Partnering with certified international suppliers ensures your materials arrive fully tested and ready for inspection.

To review certified factory testing metrics, check out the Unikim Made-in-China factory profile for detailed component data sheets. For real-world load testing and hardware assembly demonstrations, browse the video library on the Unikim Railings YouTube channel. You can also stay informed on upcoming product releases and industry compliance standards by following the Unikim LinkedIn corporate page.

Final Verdict

Specifying a commercial glass railing system guarantees an elegant balance of modern styling, dependable safety, and maximum natural light. While advanced glass systems require careful initial planning and precise on-site installation, their long-term value, low maintenance requirements, and lasting architectural appeal make them a premier choice for commercial properties.

To discuss structural loading requirements or request an estimate for an upcoming project, visit our URailing contact page to connect with an engineering specialist. To read more about our material certifications and production standards, visit our URailing about us page.
