A pipe schedule chart is one of the most important references used in piping systems, plumbing, construction, oil and gas industries, and industrial manufacturing. It helps engineers, contractors, and technicians determine the wall thickness of pipes based on their nominal size and schedule number. Understanding pipe schedules is essential for selecting the right pipe strength, pressure handling capability, and durability for different applications.
Whether you are working with steel, PVC, stainless steel, or industrial piping systems, understanding how pipe schedules work can prevent costly mistakes and improve system performance.
What Is a Pipe Schedule?
Pipe schedule refers to the thickness of a pipe wall. It is represented by numbers such as Schedule 10, Schedule 20, Schedule 40, Schedule 80, and Schedule 160. The higher the schedule number, the thicker the pipe wall becomes.
A thicker wall means:
- Higher pressure handling capacity
- Greater strength
- Increased weight
- Reduced internal diameter
Pipe schedule does not directly represent a fixed measurement. Instead, it is a standardized system for classifying pipe wall thicknesses across various pipe sizes.
For example:
- A 2-inch Schedule 40 pipe has a different wall thickness than a 6-inch Schedule 40 pipe.
- The schedule number remains the same, but the actual thickness changes depending on pipe size.
Understanding Nominal Pipe Size (NPS)
Pipe systems commonly use Nominal Pipe Size (NPS) in inches. NPS is a standardized designation rather than an exact physical measurement.
Common pipe sizes include:
- 1/2 inch
- 3/4 inch
- 1 inch
- 2 inch
- 4 inch
- 6 inch
- 8 inch
- 12 inch

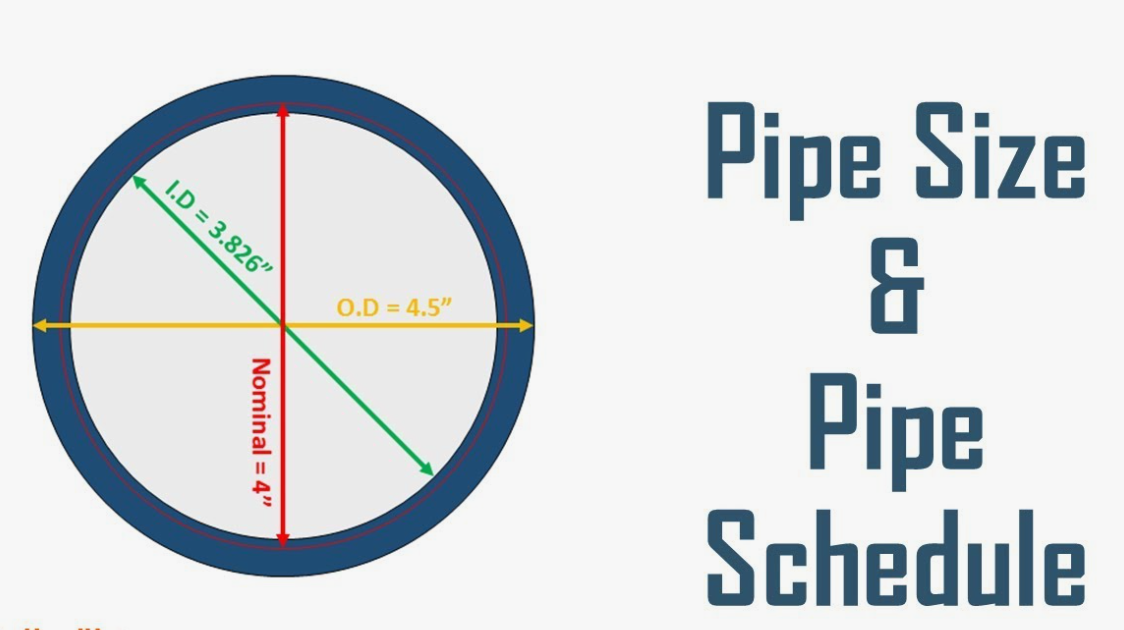

Each nominal pipe size has a specific outside diameter that remains constant regardless of schedule. Only the wall thickness and inside diameter change when the schedule changes.
For example:
| Pipe Size | Outside Diameter |
| 1 inch | 1.315 inches |
| 2 inch | 2.375 inches |
| 4 inch | 4.500 inches |
The outside diameter remains fixed, so fittings and connections stay compatible.
Common Pipe Schedules
Schedule 10 Pipe
Schedule 10 pipes have thin walls and are lightweight. They are commonly used in:
- Low-pressure systems
- Water transportation
- Drainage applications
- HVAC systems
Advantages:
- Lower cost
- Easier installation
- Reduced weight
Disadvantages:
- Lower pressure rating
- Less durable in heavy industrial use
Schedule 40 Pipe
Schedule 40 is one of the most widely used pipe schedules worldwide. It provides a balance between strength and affordability.
Applications include:
- Residential plumbing
- Industrial water systems
- Irrigation
- Chemical transport
- Construction projects
Benefits:
- Good pressure resistance
- Widely available
- Compatible with many fittings
Schedule 80 Pipe
Schedule 80 pipes have thicker walls and higher pressure capacity compared to Schedule 40 pipes.
Common uses:
- Chemical processing
- High-pressure systems
- Industrial plants
- Compressed air systems
Advantages:
- Stronger construction
- Better durability
- Higher pressure tolerance
Disadvantages:
- More expensive
- Heavier
- Smaller internal flow area
Schedule 160 Pipe
Schedule 160 pipes are extremely thick and designed for high-pressure industrial environments.
Industries using Schedule 160:
- Oil and gas
- Petrochemical plants
- Power generation
- Heavy industrial processing
These pipes are capable of handling demanding operating conditions where maximum strength is required.
Pipe Schedule Chart Example
Below is a simplified pipe schedule chart for steel pipes:
| Nominal Pipe Size | Schedule 40 Thickness | Schedule 80 Thickness |
| 1 inch | 0.133 inch | 0.179 inch |
| 2 inch | 0.154 inch | 0.218 inch |
| 4 inch | 0.237 inch | 0.337 inch |
| 6 inch | 0.280 inch | 0.432 inch |
As shown in the chart, Schedule 80 pipes always have thicker walls than Schedule 40 pipes.
Why Pipe Schedule Matters
Choosing the correct pipe schedule is critical because it affects several important factors.
Pressure Rating
Thicker pipes can withstand higher internal pressures. High-pressure systems require higher schedules, such as Schedule 80 or Schedule 160.
Flow Capacity
As wall thickness increases, the inside diameter decreases. Smaller inside diameters reduce flow capacity.
Durability
Higher schedules offer improved resistance to:
- Corrosion
- Physical damage
- Temperature stress
- Mechanical wear
Cost
Thicker pipes cost more due to increased material usage and weight. Engineers often balance performance requirements with budget considerations.
Pipe Materials and Schedules
Pipe schedules are commonly used with various materials, including:
Carbon Steel Pipes
Widely used in industrial applications because of their strength and affordability.
Stainless Steel Pipes
Used in corrosive environments, food processing, and pharmaceutical industries.
PVC Pipes
PVC pipe schedules are very common in plumbing and drainage systems.
Popular PVC schedules include:
- Schedule 40 PVC
- Schedule 80 PVC
Schedule 80 PVC pipes have thicker walls and are stronger than Schedule 40 PVC pipes.
CPVC Pipes
CPVC pipes handle higher temperatures and are often used in hot water systems.
Difference Between Schedule 40 and Schedule 80
Many people compare Schedule 40 and Schedule 80 pipes because they are the most commonly used schedules.
| Feature | Schedule 40 | Schedule 80 |
| Wall Thickness | Moderate | Thick |
| Pressure Rating | Lower | Higher |
| Weight | Lighter | Heavier |
| Cost | Lower | Higher |
| Flow Capacity | Better | Slightly Reduced |
Schedule 40 is ideal for general-purpose applications, while Schedule 80 is preferred for high-pressure or demanding environments.
Pipe Schedule Standards
Pipe schedules are standardized by organizations such as:
- ASME (American Society of Mechanical Engineers)
- ANSI (American National Standards Institute)
- ASTM (American Society for Testing and Materials)
These standards ensure compatibility and safety across industries worldwide.
The ASME B36.10 and ASME B36.19 standards are widely used references for carbon steel and stainless steel pipe dimensions.
Applications of Pipe Schedule Charts
Pipe schedule charts are used in many industries, including:
Plumbing
Residential and commercial plumbing systems rely on schedule charts to select suitable pipe thicknesses.
Oil and Gas
Pipelines transporting oil, gas, and chemicals require accurate schedule selection for safety and efficiency.
Construction
Building infrastructure often uses steel and PVC pipes for water supply and drainage systems.
Manufacturing
Factories and industrial plants depend on proper pipe schedules for steam, chemicals, and compressed air systems.
Agriculture
Irrigation systems frequently use Schedule 40 PVC pipes because they are cost-effective and durable.
How to Read a Pipe Schedule Chart
Reading a pipe schedule chart is straightforward once you understand the structure.
A chart usually includes:
- Nominal pipe size
- Outside diameter
- Wall thickness
- Internal diameter
- Schedule number
To use the chart:
- Identify the nominal pipe size.
- Find the desired schedule number.
- Read the corresponding wall thickness and internal diameter.
This information helps determine whether the pipe can handle the intended pressure and flow requirements.
Conclusion
A pipe schedule chart is an essential tool for engineers, plumbers, contractors, and industrial professionals. It provides accurate information about pipe wall thicknesses, helping users choose the right pipe for pressure, durability, and flow requirements.
Understanding schedules such as Schedule 40, Schedule 80, and Schedule 160 can significantly improve piping system performance and safety. Whether you are working with steel pipes, stainless steel pipes, or PVC pipes, selecting the correct schedule ensures reliability and long-term efficiency.
As industries continue to grow and infrastructure projects expand worldwide, the importance of proper pipe schedule selection remains critical in modern engineering and construction.
