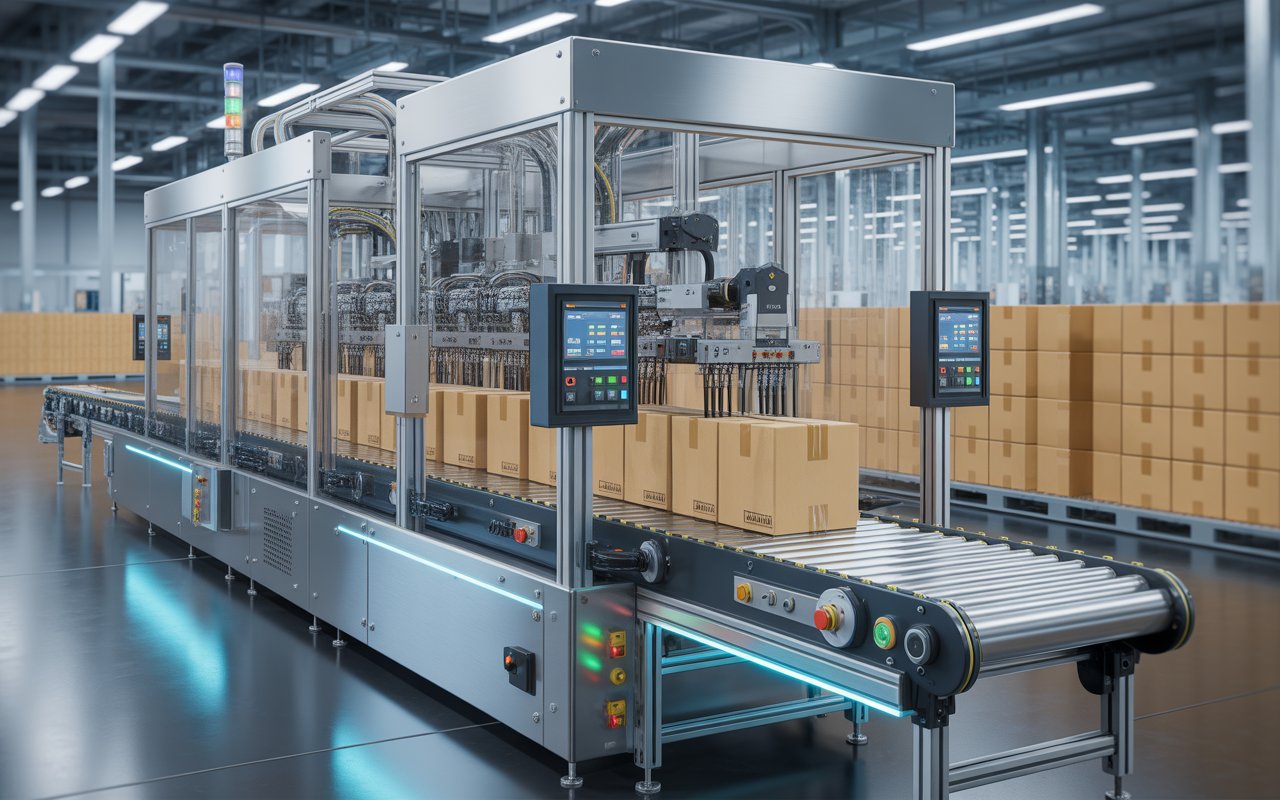

The carton box packing machine is a complex, high-speed mechanical system whose reliable operation is fundamental to the smooth functioning of the entire production line downstream of it. When a carton box packing machine stops due to a mechanical failure, the consequences cascade through the production line, creating product backups, filling line stops, and the labor cost and production schedule disruptions that unplanned downtime generates.
Systematic, consistent maintenance is the most effective investment a production operation can make in protecting the reliability and performance of its carton box packing machine investment. This guide provides the practical maintenance knowledge that production teams need to keep their carton packing equipment running reliably.
Understanding the Wear Points in Carton Box Packing Machines
Effective maintenance begins with understanding where and how wear occurs in the mechanical systems of a carton box packing machine. Different components experience different types and rates of wear that require different maintenance approaches and intervals.
Carton forming components including folding ploughs, guide rails, and forming mandrels experience progressive wear from continuous contact with carton board. This wear gradually affects the dimensional precision of carton forming, causing cartons to be inconsistently erected and potentially resulting in cases that do not meet quality standards. Regular dimensional verification of forming components and replacement of worn parts before they produce out-of-specification cartons maintains consistent case quality.
Product loading components including product pushers, transfer conveyors, and loading lane guides experience wear from contact with primary packages at production speeds. The clearances and surface conditions of these components affect product handling consistency and the reliability of the loading operation. Worn components that allow excessive product movement during loading can cause incorrect loading patterns that result in over or under-filled cases.
Sealing system components in hot melt adhesive sealing machines include nozzles, hoses, application heads, and temperature control systems that all require regular attention to maintain consistent sealing quality. Hot melt adhesive char accumulation in nozzles and application heads is the most common and most disruptive maintenance issue in adhesive sealing carton box packing machines, causing nozzle blockages that create sealing failures and requiring machine downtime for cleaning.
Drive systems including gears, chains, drive belts, and bearings experience wear at rates that depend on operating speed, lubrication quality, and alignment. Systematic lubrication of all drive components at the intervals specified by the carton box packing machine manufacturer, regular alignment verification, and timely replacement of worn drive components prevents the escalating wear that leads to catastrophic component failures.
Developing an Effective Preventive Maintenance Schedule
A structured preventive maintenance schedule is the foundation of reliable carton box packing machine operation. The schedule should be based on the manufacturer’s maintenance recommendations, adapted to reflect the specific operating conditions and production volumes of the actual installation.
Daily maintenance activities for carton box packing machine operations should include visual inspection of all critical components for obvious damage or abnormality, verification of hot melt system temperature and adhesive level, lubrication of daily-service points, basic cleaning of product contact and carton handling areas, and review of any fault or alarm history from the previous operating period. These daily activities take minimal time but catch the developing problems that escalate into major failures when undetected.
Weekly maintenance activities extend the daily inspections with more thorough examination of forming component dimensions, drive system condition, sensor and detector function verification, and review of carton quality samples against specification. Weekly maintenance provides the intermediate check frequency needed to catch issues that develop over days of operation rather than being immediately apparent from daily visual inspection.
Monthly and quarterly maintenance activities cover the deeper inspection and service work that maintains long-term carton box packing machine condition. This includes drive component replacement based on wear measurement, hot melt system deep cleaning, comprehensive seal quality verification across the carton format range, and structural inspection of the machine framework and guarding systems.
Troubleshooting Common Carton Box Packing Machine Problems
Even well-maintained carton box packing machines occasionally experience operational problems that require systematic troubleshooting to identify and resolve. Understanding the most common problems and their typical causes helps maintenance teams resolve issues quickly and minimize production downtime.
Carton forming failures that produce misshapen or poorly erected cases are typically caused by worn forming components, incorrect machine setup for the current carton format, or carton board quality that falls outside the machine’s design envelope. Systematic checking of forming component dimensions and machine settings eliminates the most common causes before investigating less frequent possibilities.
Sealing failures in hot melt systems most commonly result from nozzle blockages, adhesive temperature problems, or inadequate adhesive bead placement. Systematic inspection of the adhesive application pattern on failed seals usually reveals which specific component of the sealing system has failed to perform correctly, directing troubleshooting effort efficiently.
Conclusion
Consistent, systematic maintenance is the most cost-effective investment a production operation can make in protecting the reliability and performance of its carton box packing machine assets. The cost of planned preventive maintenance is a small fraction of the cost of unplanned breakdowns in terms of both direct repair costs and production downtime losses. Jochamp provides comprehensive maintenance documentation, genuine technical support, and reliable spare parts supply that give customers everything they need to maintain their carton box packing machine investment in peak operating condition throughout its productive service life.
