You are two hours into a car dashboard job. The last screw is buried behind a bracket, recessed into a space where no standard screwdriver can enter at anything close to a useful angle. Your hand cannot get in. The bit cannot line up. And the screw sits there, unmoved. This is the moment angle ratchet screwdriver sets were built for.

Confined-space fasteners are one of the most common frustrations in automotive work, electrical installation, cabinet fitting, and computer assembly. Standard inline screwdrivers need a clear approach path. They need swing clearance. They need room that many real-world working environments simply do not offer. The angle ratchet screwdriver solves this problem by turning the tool geometry 90 degrees — or to a selected offset angle — so the drive mechanism enters spaces that inline tools cannot reach.

This guide explains exactly what angle ratchet screwdriver sets are, what a well-specified 10-piece kit includes, where these tools perform best, and what to look for when buying. Whether you are a professional mechanic, a keen DIY worker, or an electrician looking for a tool that actually fits the job, this article covers everything you need.

What Is an Angle Ratchet Screwdriver?

The name describes the tool precisely. An angle ratchet screwdriver combines a 90-degree offset head — or adjustable angle head — with a built-in ratchet mechanism that advances the bit without requiring the user to reposition the tool after every half-turn. Together, those two features create a screwdriver that works in spaces where standard tools fail entirely.

According to the engineering overview of screwdriver geometry on Wikipedia, the critical variable in any fastener tool is the relationship between the drive axis and the access angle. Angle ratchet designs specifically address this by allowing the handle to operate in a plane that is perpendicular to the fastener — which changes the physical clearance requirements from centimetres to millimetres.

Definition and Design

An angle ratchet screwdriver consists of three main components: the handle, the ratchet mechanism, and the offset head with a bit holder. The handle is typically cylindrical or ergonomically moulded, designed for palm grip in confined spaces where finger-and-thumb rotation is not possible. The ratchet mechanism sits inside the handle body and allows the bit to advance in one direction while freewheeling in the other — so the user rocks the handle back and forth without fully repositioning after each half revolution.

The offset head is either fixed at 90 degrees to the handle axis or adjustable to a range of positions. Fixed 90-degree heads offer maximum simplicity and durability. Adjustable heads add versatility but introduce additional mechanical complexity at the pivot point.

How the Angled Head Works

When you hold a standard screwdriver inline with a screw, the handle swing arc is the limiting factor in tight spaces. In a 200 mm clearance zone, you might manage half a revolution before the handle hits something. In a 50 mm clearance zone, you might get a quarter turn, then need to reposition. That constant repositioning slows the job dramatically.

An angle ratchet changes this completely. The handle now operates perpendicular to the screw axis. You rock it through whatever arc the space allows — even 10 or 15 degrees — and the ratchet mechanism translates that partial stroke into continuous screw rotation. Access that was previously impossible becomes straightforward.

Inline vs. 90-Degree vs. Flexible Shaft

Three screwdriver configurations address confined-space challenges, and each works best in different scenarios. The table below clarifies the differences:

Type	Head Angle	Clearance Needed	Torque Feel	Best Scenario
Standard screwdriver	None	Full	Good	Open access only
Inline ratchet screwdriver	Inline	Full	Very good	Faster, but still needs clear swing
Angle ratchet screwdriver	90° / adjustable	Minimal	Good	Best for confined spaces
Flexible shaft screwdriver	Variable	Variable	Lower	Blind holes and curved access paths
Electric screwdriver	None	Full	Excellent	Speed tasks, not tight-space work

For most professional and serious DIY applications, the 90-degree angle ratchet offers the best combination of access, control, and durability. Flexible shaft tools are useful for very specific blind-hole scenarios but sacrifice torque feel. Inline ratchets are excellent for open-space repetitive work but do nothing for access problems.

What Comes in a 10-Piece Angle Ratchet Screwdriver Set?

A well-specified 10-piece angle ratchet screwdriver set includes the handle and ratchet body plus nine bits covering the drive types most commonly encountered in automotive, electrical, and furniture applications. The selection of bits in a quality set is not random — it reflects the real-world fastener mix on vehicles, cabinet systems, and electronic enclosures.

Bit Types — Phillips, Flathead, Torx, Hex

The following table shows a typical 10-piece configuration and where each bit is most useful:

Bit	Drive Type	Typical Application
Phillips #1	Cross-head	Small screws in electronics, cabinet hinges
Phillips #2	Cross-head	Most common — door hardware, furniture, panels
Flathead 6mm	Single slot	Electrical terminals, older fittings
Flathead 8mm	Single slot	Larger panel screws, junction box covers
Torx T15	Star profile	Automotive panels, bicycle components
Torx T20	Star profile	Interior trim, computer housings
Torx T25	Star profile	Brake callipers, engine covers
Hex 4mm	Hex socket	Furniture bolts, handlebar stems
Hex 5mm	Hex socket	Seatpost clamps, machinery guards
Hex 6mm	Hex socket	Large furniture, M8 bolts

This spread covers the fastener types found across most automotive interiors, electrical panels, bicycles, and flat-pack furniture. The IRONCUBE 10 Pcs Angle Ratchet Screwdriver Set available on Amazon follows this configuration and packages the bits in a labelled case that keeps the set organised during transport.

Handle Ergonomics and Grip Materials

The handle on a quality angle ratchet screwdriver needs to work in two ways simultaneously: fit into tight spaces and remain comfortable under sustained use. These are competing requirements. A slim handle fits better into tight enclosures but fatigues the hand faster on a long job. A large-diameter handle transfers more torque but may not reach the recess where the screw sits.

The best angle ratchet handles use a bi-material construction — typically a hard nylon or glass-filled polymer core with a soft-grip TPR (thermoplastic rubber) overmould. The hard core provides structural rigidity. The soft overmould creates enough friction to control the tool during the ratchet stroke without slipping. The IRONCUBE angle ratchet uses this construction, with a handle diameter sized for palm grip without excessive bulk.

Ratchet Mechanism Direction Options

A useful angle ratchet screwdriver has three direction settings: clockwise drive (tightening), counter-clockwise drive (loosening), and locked (for direct manual drive without ratcheting). The direction selector should operate cleanly and definitively — a selector that drifts between positions mid-use is dangerous because it can back off a screw you are trying to tighten.

Look for a selector collar or switch that has clearly defined detent positions. The click should be firm enough that the setting stays locked during use. On the IRONCUBE 10-piece set, the direction collar uses a three-position detent mechanism that stays in position under working loads.

Storage and Portability

Bits that rattle loose in a toolbox take three minutes to find and another minute to identify. A well-designed angle ratchet screwdriver set comes in a case or pouch where each bit has a labelled slot. This matters more than it seems on a busy job site where tools are used and put down dozens of times a day.

The IRONCUBE 10-piece set includes a moulded plastic case with individual bit slots. The handle stores in a shaped recess that prevents it from rolling. The case is compact enough to fit in a tool bag side pocket — which is exactly where this kind of specialist tool should live, ready to deploy when the standard screwdriver fails.

Where Are Angle Ratchet Screwdrivers Most Useful?

The scenarios where angle ratchet screwdriver sets genuinely outperform every alternative share one characteristic: the fastener is accessible, but the space around it is not. Understanding where that situation arises most frequently helps you identify whether this tool will earn regular use in your work.

Automotive Interior Panels

Modern vehicle interiors are assembled with screws hidden behind trim panels, under seats, inside dashboard recesses, and within door cards. Many of these screws sit in positions where the approach angle for a standard screwdriver is blocked by surrounding structure. The angle ratchet screwdriver reaches them cleanly because the handle operates in the available space around the screw rather than requiring a clear inline path.

Dashboard removal, centre console disassembly, door card replacement, and glove box work are all applications where automotive technicians reach for their angle ratchet before trying any other tool. The IRONCUBE screwdriver range is built around exactly these professional automotive needs.

Electrical Panels and Junction Boxes

Electrical panel covers, consumer unit surrounds, junction box lids, and switchgear housings all use standard fasteners — but the screws are often located inside recessed frames where an inline driver cannot enter at the correct angle. A 90-degree ratchet screwdriver drives these screws cleanly without disturbing surrounding wiring or terminal connections.

For electricians working in tight distribution boards or fitting back-boxes in masonry walls, the angle ratchet is a daily tool. The IRONCUBE YouTube channel shows the tool in real electrical installation scenarios — useful if you want to see the access advantage before buying.

Cabinet and Furniture Assembly

Flat-pack furniture uses a mix of cam locks, hex bolts, and Phillips screws — many of them located in recessed channels or inside frame corners where a standard screwdriver cannot operate perpendicular to the screw head. Angle ratchet screwdriver sets with hex and Phillips bits handle these positions easily, reducing assembly time and the frustration of trying to align a standard driver at an awkward angle.

Kitchen unit fitting, wardrobe assembly, and shelving installation all share this characteristic. The angle ratchet also works well for the hinge screws on cabinet doors, which are typically sunk deep into cup holes that block standard driver access.

Computer Hardware Installation

PC case screws — particularly those securing motherboard standoffs, drive cages, and GPU brackets — are often in positions where the case wall blocks a standard screwdriver approach. Angle ratchet screwdriver sets with small Phillips and Torx bits reach these positions without the contortions that standard tools require.

Server rack installation and professional IT cabinet work involve the same access issues at larger scale. The combination of the right bit size and the perpendicular handle makes cable management screws, patch panel fixing, and rack-mount equipment installation significantly faster.

How to Use an Angle Ratchet Screwdriver Correctly

Using an angle ratchet screwdriver is straightforward once you understand the mechanism. But there are a few techniques that separate efficient use from frustrated fumbling — particularly when working in spaces where you cannot clearly see what you are doing.

Setting the Ratchet Direction

Always set the direction selector before you approach the fastener. The selector position — clockwise for tightening, counter-clockwise for loosening — determines which stroke drives the screw and which freewheels. Setting it after you have engaged the bit often means the first stroke goes the wrong way, which can start to back out a partially tightened screw before you realize the setting is wrong.

For removal work, set the selector to counter-clockwise. Apply steady downward pressure on the bit to keep it seated in the screw head, and use short, controlled strokes. Rushing the ratchet stroke on removal risks camming out of the screw head — particularly on cross-head screws that may already be worn.

Switching Bits Quickly

Most angle ratchet screwdrivers use a 1/4-inch hex bit holder — the same standard used by most power drivers and ratcheting screwdriver sets. This means any standard 25 mm or 50 mm hex-shank bit will fit. The magnetic bit holder on a quality tool holds the bit firmly enough that it does not fall out when the tool is inverted, but releases cleanly when you pull the bit away.

To switch bits in a confined space, pull the current bit straight out of the holder, seat the next bit with a firm push until it clicks, and confirm it is magnetically retained before repositioning. Working in a blind space with a bit that falls out is a reliable way to lose it in the engine bay.

Applying the Right Torque

The ratchet mechanism in an angle screwdriver is designed for light to medium torque applications. For most panel screws, junction box fixings, and furniture fasteners, this is exactly the right range. However, these tools are not designed for high-torque fasteners — structural bolts, wheel bolts, or cylinder head screws need dedicated torque tools, not a ratchet screwdriver.

A good practice when using any angle ratchet screwdriver set for the first time on a new application: start the screw with the ratchet and finish the last quarter-turn by hand in locked mode to confirm seating. This is especially important for electrical terminals and panel fixings where overtightening damages threads or contacts.

Buying Guide: What to Look for in Angle Ratchet Screwdriver Sets

The market for angle ratchet screwdrivers ranges from professional-grade tools that will last decades to budget versions that fail within a month. These are the factors that separate the two.

Bit Count and Compatibility

A 10-piece set covering Phillips, flathead, Torx, and hex bits in the most common sizes handles roughly 85% of fasteners encountered in automotive, electrical, and furniture work. That makes a well-specified 10-piece kit the practical baseline for most buyers. Sets with fewer bits create gaps that stop you mid-job. Sets with more bits often duplicate common sizes — useful for professionals who need back-ups, but unnecessary for general use.

Check that the bit shank follows the standard 1/4-inch hex format. This ensures compatibility with other ratchet handles, extension bars, and power driver chucks you already own — so your bits are interchangeable across your whole toolkit.

Handle Comfort and Size

The right handle size depends on how the tool will be used. For fine electronics work and small panel screws, a slimmer handle gives better feel and control. For automotive trim work where more torque is needed, a larger-diameter handle provides better mechanical advantage.

Test the grip material. TPR overmoulded handles stay controllable in oily or damp conditions — important for automotive and plumbing use. Hard plastic handles become slippery with any moisture on the surface. For professional use, the soft-grip construction is the practical choice.

Build Quality and Material

The ratchet mechanism is the critical wear point in any angle ratchet screwdriver. A quality mechanism uses a hardened steel pawl and ratchet gear with a smooth, consistent action. Budget tools often use softer metal gears that wear quickly or plastic pawl components that break under sustained use.

The body of the tool — the offset head housing and the bit holder — should be made from chrome vanadium or S2 steel for the load-bearing components. S2 steel is the standard for professional-grade screwdriver bits because of its combination of hardness (typically HRC 60–62) and impact resistance.

You can see the full IRONCUBE screwdriver construction quality in the product videos on their YouTube channel, which shows both the mechanism and the bit engagement in real working conditions.

Value for Money

A professional-grade angle ratchet screwdriver set does not need to cost a fortune. The IRONCUBE 10-piece set, available directly on Amazon, delivers the build quality and bit range that professionals need at a price point accessible to serious DIY buyers as well. Compare it with what a single service call-out costs when the right tool is not in the box — and the value calculation becomes very clear.

For buyers exploring the full range of screwdriver options before deciding, the IRONCUBE screwdriver category covers inline ratchet sets, multi-bit kits, and the angle ratchet range together.

Frequently Asked Questions About Angle Ratchet Screwdriver Sets

What is the difference between an angle ratchet screwdriver and a regular ratchet screwdriver?

A regular inline ratchet screwdriver operates with the handle in line with the bit — the ratchet mechanism speeds up repetitive tightening on open-access fasteners but does nothing for confined spaces. Angle ratchet screwdriver sets add a 90-degree offset head that positions the handle perpendicular to the screw axis. That geometry change is what allows the tool to reach fasteners that inline tools cannot approach. If you only work in open spaces, an inline ratchet is sufficient. If you regularly encounter recessed or obstructed screws, the angle ratchet is the tool that actually solves the problem.

What bits fit an angle ratchet screwdriver?

Most angle ratchet screwdriver sets use the standard 1/4-inch hex shank bit format — the same format used in most cordless drills, impact drivers, and ratcheting screwdriver handles. This means standard 25 mm or 50 mm screwdriver bits from any manufacturer will fit. Phillips, flathead, Torx, hex, square, and Pozidriv bits all come in this shank size. Always confirm the bit holder on your specific tool uses 1/4-inch hex before buying separate bits — a small number of proprietary-design angle ratchets use different holders that limit compatibility.

Are angle ratchet screwdrivers suitable for professional use?

Yes — and professionals in automotive, electrical, and cabinet installation trades use them regularly. Angle ratchet screwdriver sets at the quality level of the IRONCUBE 10-piece kit are built for sustained professional use, not occasional home repair. The ratchet mechanism, the bit compatibility, and the handle construction all meet the demands of daily professional use. The key is choosing a set with a hardened steel ratchet gear and S2 steel bits — budget versions with soft-metal mechanisms fail under sustained load and are not suitable for professional deployment.

Can I use an angle ratchet screwdriver on high-torque fasteners?

No — and this is an important limitation to understand before using angle ratchet screwdriver sets on any structural or safety-critical fastener. The ratchet mechanism and the offset head in these tools are designed for light to medium torque applications: panel screws, electrical fixings, trim fasteners, furniture bolts, and similar applications. For high-torque fasteners — engine bolts, wheel nuts, structural hardware — use a breaker bar, torque wrench, or impact driver. Using an angle ratchet on high-torque fasteners risks mechanism failure or cam-out damage that can leave the fastener in a state that is harder to remove than when you started.

How do I stop the bit from falling out in a confined space?

This is one of the most practical concerns when using angle ratchet screwdriver sets in engine bays or deep panel recesses. The answer is to choose a tool with a magnetic bit holder strong enough to hold the bit inverted without releasing. Quality sets use neodymium magnets in the bit holder that hold standard steel bits firmly under gravity. Before working in a blind space, test the hold by loading the bit and inverting the tool — if the bit releases under its own weight, the magnet is too weak for confident inverted use. The IRONCUBE angle ratchet uses a magnetic holder rated for inverted use, which removes this concern in practical work.

Summary: Why Angle Ratchet Screwdriver Sets Belong in Every Professional Kit

Standard screwdrivers are excellent tools — until the screw is somewhere they cannot reach. That is a situation that arises on virtually every vehicle, in most electrical panel enclosures, inside most furniture assemblies, and throughout computer hardware work. Angle ratchet screwdriver sets exist specifically to solve that access problem, and they do it without sacrificing control or requiring specialist technique.

A well-specified 10-piece set — covering Phillips, flathead, Torx, and hex bits in the most useful sizes — handles the vast majority of confined-space fastening tasks across automotive, electrical, and furniture applications. The ratchet mechanism reduces the physical effort of repetitive fastening in tight spaces. The 90-degree head geometry removes the access barrier that makes standard tools impractical.

The IRONCUBE 10 Pcs Angle Ratchet Screwdriver Set delivers on all of these requirements: quality ratchet mechanism, bi-material handle, magnetic bit retention, standard 1/4-inch bit compatibility, and a compact case for organised storage. It is available on Amazon, and the full IRONCUBE screwdriver range is at ironcubeworks.com.

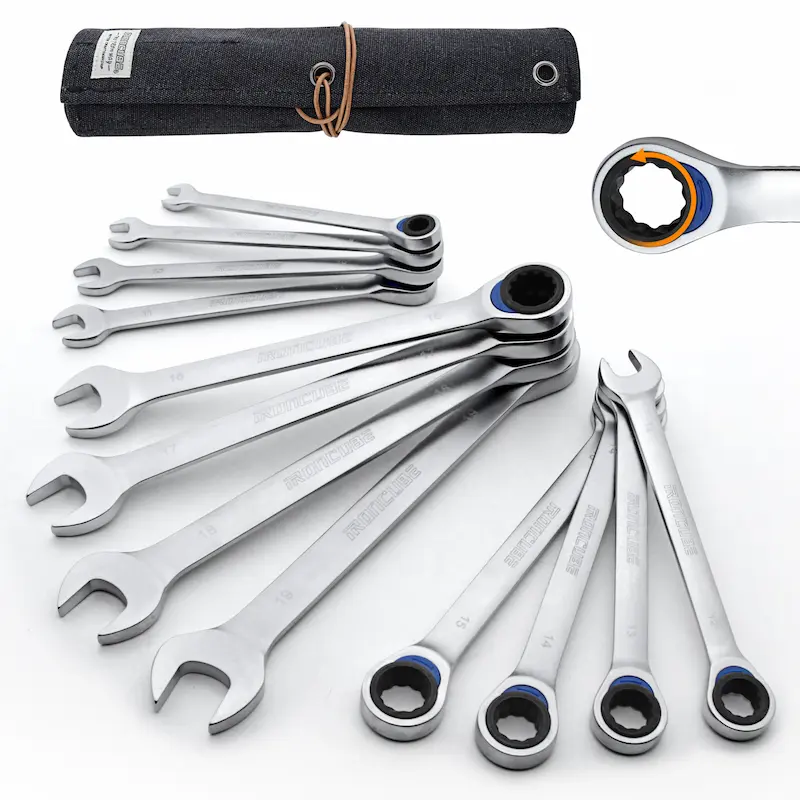

For buyers also sourcing wrenches, the IRONCUBE wrenches range covers ratcheting sets, combination wrenches, and specialist options. The best ratcheting wrench set guide and the non-ratcheting wrenches article are practical resources for completing a professional toolkit. For custom or bulk orders, contact the team at ironcubeworks.com/contact.

Also worth referencing when building out a full hand tool set: the metric to SAE wrench conversion chart, the reversible vs fixed head ratcheting wrench comparison, and the wrench size chart.
