The modern Land Rover Defender (L663) combines legendary off-road capability with cutting-edge lighting technology. However, its high-tech Matrix LED and Land Rover Defender L663 Headlight Repair assemblies are notorious for electronic glitches, moisture ingress, and ballast driver failures.
Replacing a single OEM Defender LED headlight cluster can cost upwards of £1,500 to £2,500 at a main dealership. Fortunately, component-level repair offers a smarter, far more affordable alternative. Whether your DRL halo has flickered out or you are facing a total beam failure, this guide covers everything you need to know about Land Rover Defender L663 Headlight Repair.
1. Why Do Defender L663 Headlights Fail?
Unlike older halogens with simple replaceable bulbs, L663 headlight clusters function as self-contained micro-computers. Inside each housing, you will find high-power LED arrays, cooling fans, leveling stepper motors, and specialized control ballast modules.
The most common failure points include:
- Internal Condensation & Water Ingress: Thermal cycling breaks down housing seals. Moisture builds up on internal PCBs, corroding micro-soldered traces and frying LED driver chips.
- DRL (Daytime Running Light) Yellowing or Dimming: Overheating causes the phosphor coating on the LED chips or acrylic light pipes to degrade, turning the crisp white halo yellow or causing it to fail completely.
- Headlight Control Module (HCM) Failure: Communication loss between the vehicle’s Central Junction Box and the headlight ballast via the CANbus network results in error messages like “Adaptive Front Lighting System Fault”.
- Matrix LED Blind Spot Errors: On Matrix units, individual shadow-casting LED segments burn out, causing adaptive high-beam dipped zones to freeze.
2. CommonLand Rover Defender L663 Headlight Repair Symptoms & Fixes
When lighting issues appear on your dashboard, identifying the root cause prevents unnecessary parts replacement.
| Dashboard / Visual Symptom | Primary Root Cause | Repair Solution |

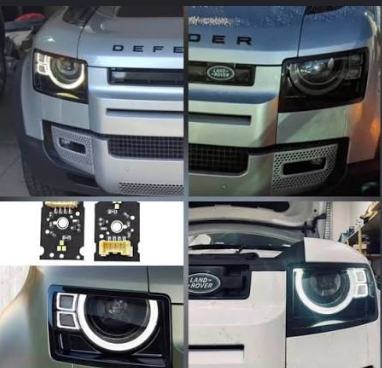

| Yellow / Dim DRL Ring | Scorched LED emitter board or melted optical light guide. | Replace internal DRL PCB board & polish acrylic light tube. |
| Complete Headlight Failure (One Side) | Blown ballast driver module due to water damage. | EEPROM clone & bench-test replacement ballast module. |
| Adaptive Lighting Error On Dash | Leveling motor failure or HCM CANbus communication drop. | Software recalibration using JLR Pathfinder diagnostic tools. |
| Heavy Internal Water Droplets | Cracked lens seal or blocked breather vents. | Reseal housing perimeter and replace internal desiccant packs. |
3. Repair vs. Replacement: The Cost Breakdown
Main dealerships rarely repair internal electronics—their standard procedure is to replace the complete headlight unit and charge heavy programming labor fees.
| Option | Estimated Cost | Pros | Cons |
| Main Dealer Assembly Swap | £1,800 – £2,800 per light | Genuine brand-new housing unit. | Extremely expensive; long backorder lead times. |
| Used / Salvage Headlight | £700 – £1,200 per light | Lower initial hardware cost. | Risk of inheriting identical hidden water damage or locked coding. |
| Specialist Component Repair | £250 – £550 per light | Keeps original casing, fixes root cause, includes warranty. | Requires shipping or bringing unit to a skilled bench-repair workshop. |
4. Diagnostic & Repair Workflow
Repairing an L663 headlight cluster requires specialized bench tools and software calibration.
1.System Fault Scanning:15 minutes.
Connect JLR Pathfinder or Topix Cloud diagnostic equipment to interrogate the Headlight Control Module (HCM) for stored Diagnostic Trouble Codes (DTCs).
2.Physical & Moisture Inspection:30 minutes.
Remove the front bumper cover and extract the headlight assembly. Inspect internal breather tubes, lens seals, and check for pooled water inside the lower housing.
3.Bench Testing & PCB Repair:45 minutes.
Open the service ports or separate the lens housing using controlled heat. Test individual LED driver channels on an oscilloscope, replacing burnt-out DRL boards or water-damaged ballast modules.
4.Resealing & Software Coding:20 minutes.
Reseal the headlight housing with high-grade butyl rubber sealant. Reinstall on the vehicle and execute a diagnostic calibration to align matrix beams and re-pair module serial numbers.
5. Integrating Full Vehicle Electronic Care
The Defender L663 is a masterpiece of complex automotive electronics. Maintaining lighting performance often goes hand-in-hand with keeping other encrypted security modules in check.
For instance, if your vehicle experiences a voltage drop that corrupts your Headlight Control Module, it can also cause key transponder desynchronization. If your smart remote stops responding, getting professional Landrover key replacement ensures your vehicle’s security modules, Keyless Vehicle Module (KVM), and immobiliser remain fully synced alongside your lighting controls.
Featured Snippet FAQs
Can a Land Rover Defender LED headlight be repaired without buying a new assembly?
Yes. In most cases, individual components like burnt DRL LED boards, water-damaged ballast modules, and degraded lens seals can be repaired or replaced independently at a fraction of the cost of a full assembly.
Why do Defender L663 daytime running lights turn yellow?
Yellowing is caused by heat buildup inside the optic assembly. Excessive heat degrades the phosphor coating on the DRL LED emitters and scorches the acrylic light guide tubes, shifting the crisp white light to an amber or yellow hue.
Do replacement Land Rover Defender headlights require coding?
Yes. Modern L663 LED and Matrix headlight units utilize integrated control modules linked to the vehicle’s central CANbus network. Installing a new or repaired ballast module requires diagnostic software (such as JLR Pathfinder) to pair serial numbers and calibrate beam levelling.
Expert Defender L663 Headlight & Electronics Repair
Don’t spend thousands on a brand-new headlight assembly at a main dealer. Get expert bench-level circuit repairs, DRL restoration, and module re-coding directly from Elite Module Repair.
Whether you are dealing with moisture damage, flickering Matrix LEDs, or need complete Land Rover Defender L663 Headlight Repair, visit our dedicated service hub today or contact our engineering team for immediate assistance.
